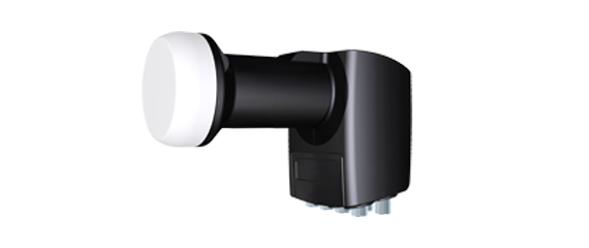

Inverto LNB - octo (8xF)
Were sorry, but this product is no longer valid.
Categories
Seller
iFly s.r.o.
iFLY, s.r.o.
Minimum order quantity
1
Maximum order quantity
100
Valid to
2016-05-12
Manufacturer
OEM
Bar code (EAN)
5453001045900
Description
Low Band Input Frequency Range
10.7 ~ 11.7 GHz
Low Band Output Frequency Range
950 ~ 1950 MHz
Low Band LO Frequency
9.75 GHz
High Band Input Frequency Range
11.7 ~ 12.75 GHz
High Band Output Frequency Range
1100 ~ 2150 MHz
High Band LO Frequency
10.6 GHz
Noise Figure
0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy
+/- 1.0 MHz Max.
LO Temperature Drift
+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)
- 90 dBc / Hz Max.
Conversion Gain
55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth)
+/- 0.75 dB
Gain Variation (Over Full Band)
+/- 4 dB Max.
Image Rejection
40 dB Min.
1 dB Compression Point (@ Output)
0.0 dBm Min.
Cross Polarization Isolation
22 dB Min.
Control Signal Ca (Vertical Polarization)
10.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization)
16.0 ~ 20.0 V
Control Signal Cc (Band Switching)
22 +/- 4 kHz
Output VSWR
2.5 : 1
In-Band Spurious
- 60 dBm Max.
Current Consumption
210 mA Max. @ 11 ~ 20 V
Operating Temperature
- 30 °C ~ + 60 °C
Output Impedance
75 ?
Output Connector
F-Type (Female)
Weight
256 g
Manufacturer's website
http://www.inverto.tv/products/product.php?id=89
